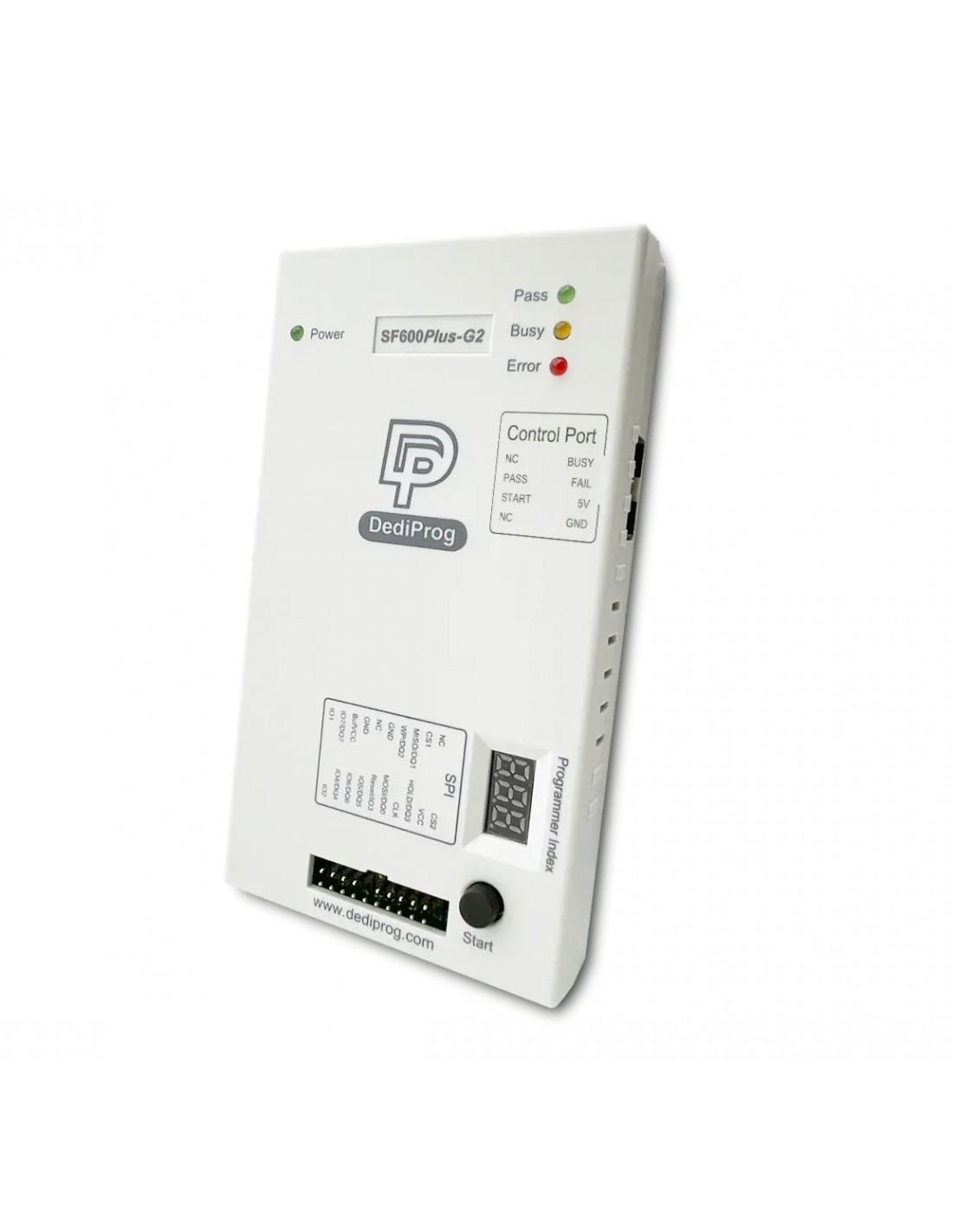

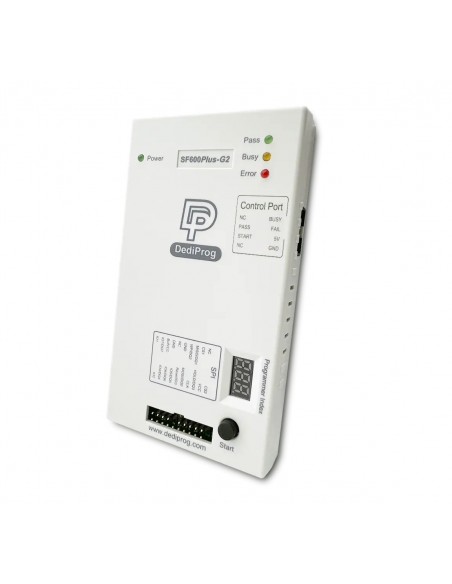

SF600Plus-G2 programator SPI pentru memorii flash NOR/NAND

SF600Plus-G2 Feature

SF600Plus-G2 is a high-speed Serial NOR/NAND Flash programmer with In-Circuit Programming (update the SPI Flash soldered on board) and Standalone programming (update the SPI Flash in the socket adaptor) Mode. With DediProg SF software and the USB, it offers friendly user interfaces and powerful features.

The newly designed SF600Plus-G2 is the upgraded version of SF600 and SF600Plus, which greatly increases the programming efficiency with the SOC architecture of FPGA. Other than the original functions of the SF600/S600Plus, it can also support SPI NAND, which will be convenient for the developer when programming.


SF600Plus-G2 Highlights

• High-speed USB and high SPI performance; the USB and Standalone mode support any volume of the SPI Flash on the market.
• Support 1.2V low voltage IC.
• Support IC Kinds: SPI NAND/SPI NOR.
• In-Circuit Programming: Program on board SPI Flash.
• Off-line Programming: Program SPI Flash in the socket. (Support ProgMaster's and NuProgPlus' sockets)
• Start button feature: Able to Batch when connecting to the software.
• Signal conflict protections.
• Multi-Programmers Capability through USB.
• Programmer Index displays on the programmer.
• Support 2 CS pins.
• Stand-Alone Mode: Support Start button programming and Control Port for removing control programming.
• Support WIN8 and above.
• Support both 32 and 64bit OS.
• Support Single/Dual Multiple Dies.
• Support Single/Dual/Quad/Octal. IO.

Performance

                                                                                                                                                  Unit: sec

                                                                                                                                                  Unit: sec

*Please note the programming and verification time will depend on different IC types; please refer to the IC specification before programming.

Hardware

SF600Plus-G2 is designed with an ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF600Plus-G2 2x10 header pin out. DediProg also provides the SF600Plus-G2 2 pcs of ISP Cable which is used to connect the programmer to the 2x10 and 2X6 (2.54mm) ISP Pin Header on board, please refer to Table 2: 2x10 and Table 3: 2x6 for the SF600Plus-G2 ISP Cable pin out.

Table 1: SF600Plus-G2 ISP Header Pin Out (2x10)

Table 2: ISP Cable Connector Pin Out (2x10)

Table 3: ISP Cable Connector Pin Out (2x6) (Support Single, Dual, Quad)

            Table 4: Control Port


The SF600Plus-G2 USB software toolchain offers high flexibility and meets the highest requirements.

Engineering Mode    For engineers and experts to access advanced features for development, repair, etc.

Production Mode   For operators in production to control multiple programmers and improve the throughput.

Command Line   Customer software can control multiple SF600Plus programmers by command line interface.

Hardware Requirement for ISP :

To have a clear understanding of the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes: AN0103 and AN0106 and In-System Programming (ISP) for SPI NOR Flash.

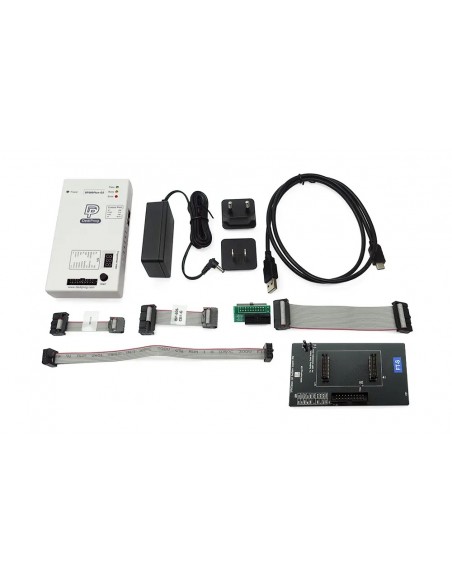

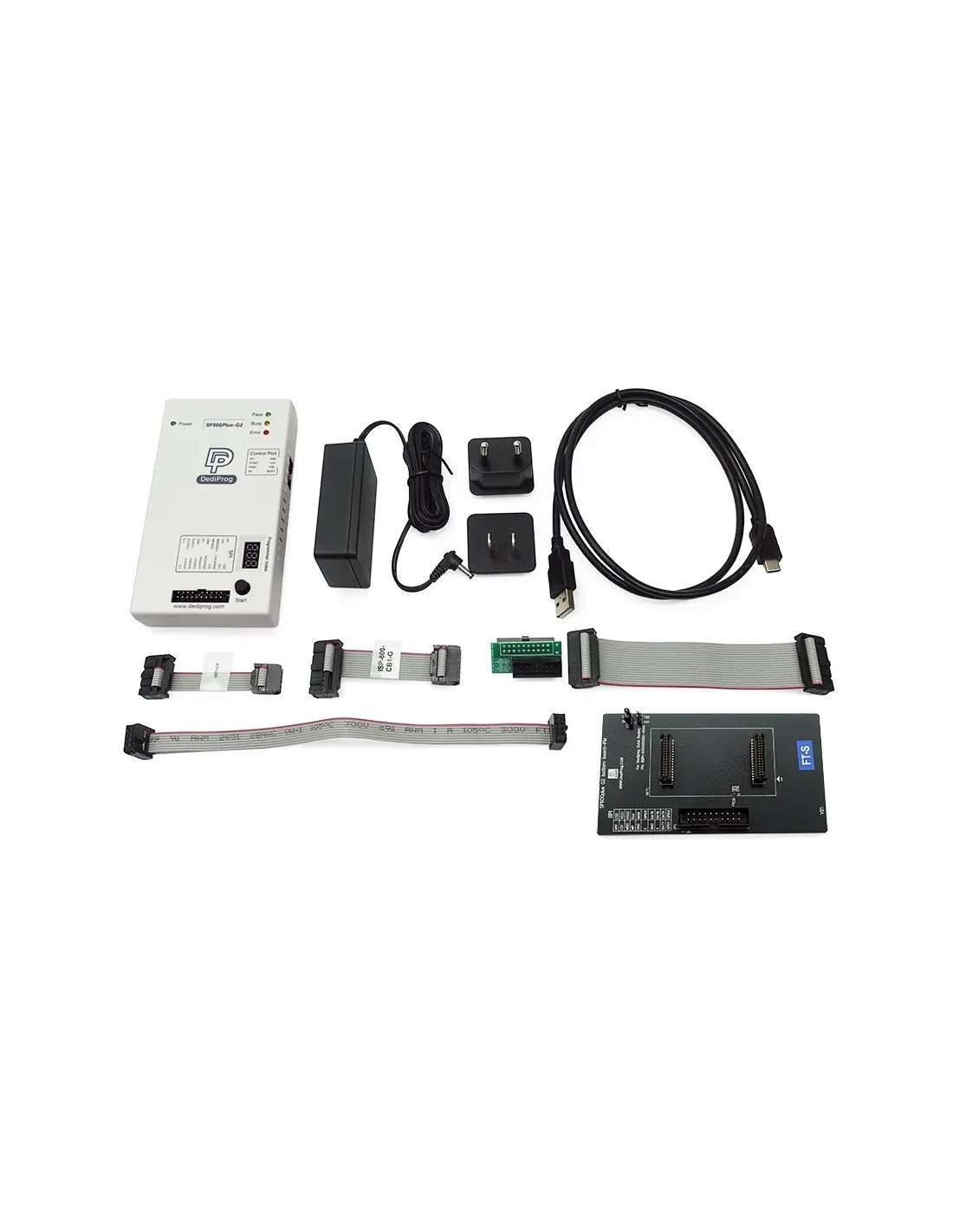

Standard Package

1. SF600Plus-G2 Programmer x 1
2. USB 2.0 100cm Cable (A Male -C Male) x 1
3. Power Adapter (Including US and EU plugs) x 1
4. SF600 ISP Cable x 1
5. SF100 ISP Cable x 1
6. SF600 Universal Adaptor x 1
7. Pin 2x10 to 2x10 Cable x 1
8. Pin 2x4 to 2x4 Cable x 1
9. ProgMaster Socket Bottom board(SF600Plus-G2) x1
10. Product Card (Software Download QRcode) x 1

Optional Purchase

• Backup Boot Flash Module-8N
• Backup Boot Flash Module-8W
• Backup Boot Flash Module-D8W
• Backup Boot Flash Module-DIP
• Backup Boot Flash Module-16W
• Backup Boot Flash Module QUAD-8W
