EM100Pro-G3 SPI NOR Flash Memory Emulator

Feature

EM100Pro-G3 is an SPI NOR Flash emulator that seamlessly integrates with high-speed DRAM memory, ensuring optimal code updating performance. Developed in collaboration with leading SPI NOR Flash suppliers, this tool is designed to emulate the behavior of both current and next-generation SPI NOR Flash devices.

This emulator significantly improves productivity by swiftly downloading firmware code or data, even for high-density applications of up to 1Gbit. Additionally, it offers a valuable "SPI BUS Analyzer" feature that captures and logs all SPI commands and data on the SPI bus, facilitating the debugging process.


Highlights

• Emulate all the market SPI NOR Flash in one click
• Excellent code Update and download performances
• Designed to support future SPI NOR Flash evolution:
  • Voltage: 1.8V/3.3V
  • Frequency: Up to 50MHz for Single IO, Dual IO, and Quad IO
  • Capacity: 512Kbit~4Gbit
• Support Dual and Quad IO communication
• Display and edit memory content evolution
• Debug functions:
  • SPI Protocol analyzer and SPI HyperTerminal
  • High-speed internal buffer for SPI Trace log data saving
  • Suitable with Intel motherboard
  • EM100Pro-G3 can connect with the Intel motherboard by a specific adaptor (optional)

Performance (Erase+Program+Verify)

Hardware

The EM100Pro-G3 has two 2.54mm pitch male connectors of:

• 2x2 for the Reset and Trig signals
• 2x10 for the Emulation signals

EM100Pro-G3 is designed with an ISP header, through different cables/adaptors, it can connect to the PCB board directly. Please refer to Table 1 for the EM100Pro-G3 2x10 header pin out.
DediProg also provides the EM100Pro-G3 ISP Cable which is used to connect the EM100Pro-G3 programmer to the 2X5 2.54mm ISP Pin Header on board, please refer to Table 2 for the EM100Pro-G3 ISP Cable 2x5 pin out.

Table 1: EM100Pro-G3 ISP Header Pin Out (2x10),(2x2)

Table 2: ISP Cable Connector Pin Out (2x5)

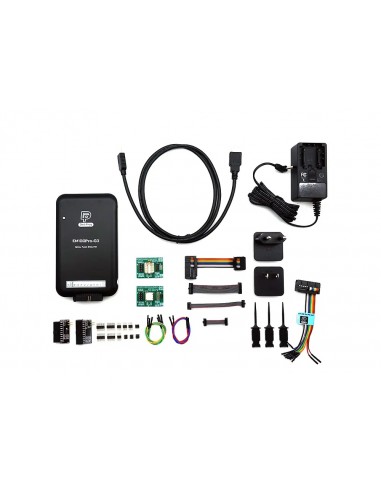

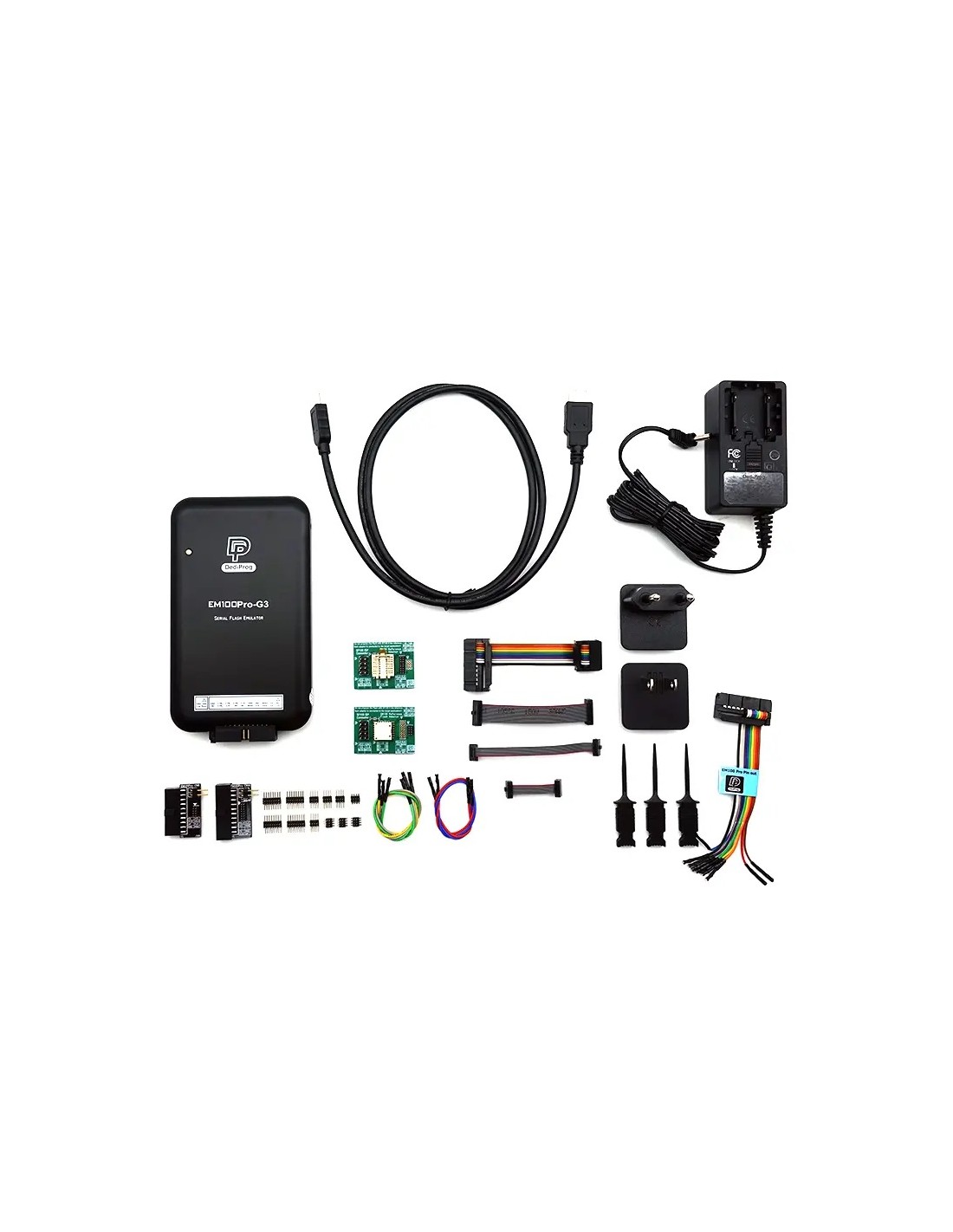

Standard Package

• EM100Pro-G3 x 1
• USB 2.0 100cm Cable (A Male -C Male) x 1
• Power Adapter (Including US and EU plugs) x 1
• 2.54mm 2x10 to 2.54mm 2x5 cable x 1
• 1.27mm 2x4 to 1.27mm 2x4 cable x 1
• 1.27mm 2x4 to 1.27mm 2x4 cable 2.5cm x 1
• 1.27mm 2x8 to 1.27mm 2x8 cable x 1
• 2.54mm 2x10 to 1.27mm 2x4 SO8 connection adaptor x 1
• 2.54mm 2x10 to 1.27mm 2x8 SO8 connection adaptor x 1
• 12cm EM100Pro split cable with grabber clip x 1
• 1.27mm 2x8 SMT male header  (10.3mm) x 4
• 1.27mm 2x4 SMT male header (6.0mm) x 4
• 1.27mm 2x4 SMT male header (10.3mm) x 4
• 15cm single wire with 2.54mm Dupont head x 5
• EM100Pro Reference Flash Adaptor (SO8W) x 1
• EM100Pro Reference Flash Adaptor (SO16W) x 1
• Grabber Clip x 2

SPI Flash Emulation Interface

SPI Bus Trace Interface

SPI Hyper Terminal Interface
